AT-505
Vehicle-mounted Frequency Jammer
AT-505 Vehicle-mounted Frequency Jammer, integrated design as a vehicle-mounted luggage, with good concealment, can not be seen as a jamming car. It is widely used in scenarios that require wireless signal blocking, such as explosive disposal, anti-terrorism, and technical detection. It can effectively jam signals such as remote control devices (including UAV and unmanned vehicles), digital walkie-talkies, 2G/3G/4G mobile phones (TD-LTE and FDD-LTE), 5G mobile phones (2.6G\3.5G\4.8G\4.9G), Bluetooth, 2.4G/5.8G WI-FI, etc.
Applied to the detonation, technical investigation and other need for wireless signal jamming and control.
Features
Concealed Appearance

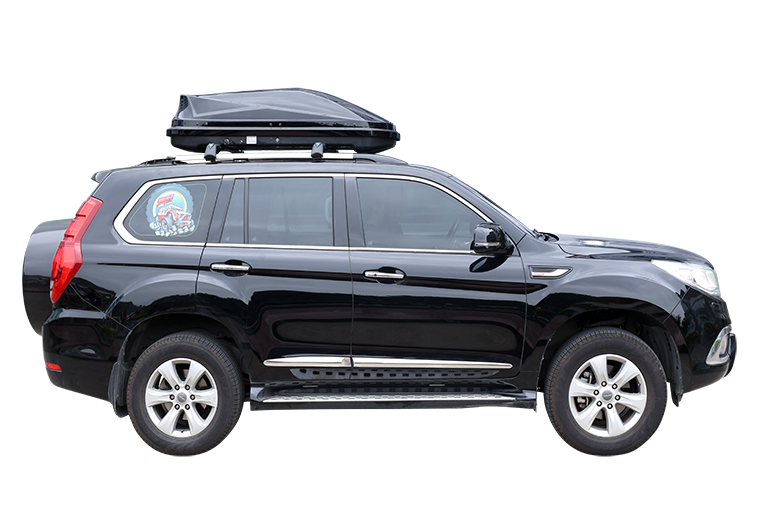

Integrated design with standard roof-box shape, no leakage rod antennas, combining aesthetics and performance; It is difficult to identify as a jamming vehicle during the task.
No Modification
The host is only connected to the interior of the vehicle by a flat cable, without damaging the body structure and no need for modification registration, suitable for various brands of SUVs.
Efficient Jamming with SDR
Based on SDR architecture and directional antennas, targeted and efficient jamming is carried out on target signals to achieve longer jamming distance with lower power consumption.
Low Power Consumption
The on-board battery can provide power to the equipment without the need to install a power take-off generator.
Easy to Operate
Only one Pad is needed for device switch control, system parameter setting, and maintenance management, without additional control switches.
Investment Protection
Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement.
Applications
Specifications
| Parameter | Description |
| Jamming mechanism | SDR (Software Defined Radio) |
| Jamming frequency range | 20MHz~6000MHz |
| Whole RF Power | ≤320W |
| Antenna type | Directional antennas |
| Power Supply | Car battery |
| Power consumption | ＜1300W |
| Working temperature | -20℃~+55℃ |
| Jamming distance |
Mobile communication: >70m (environmental background intensity RSRP: -90dBm) Drone remote control/navigation interference: >500m Two-way radio: >60m (civil two-way radio, transmitting power: 3W) Unmanned vehicles/remote control: >100m |
*Special Announcement: Due to the product update and network display the existence of the conversion period, the page graphic parameters may be different from the actual product, the page graphic content does not serve as the basis for the actual delivery of specific products and technical parameters to determine the actual product configuration shall prevail. Intention to buy customers, please contact the sales staff to confirm in a timely manner, AWP retains the right to change the picture parameters and the final interpretation.
