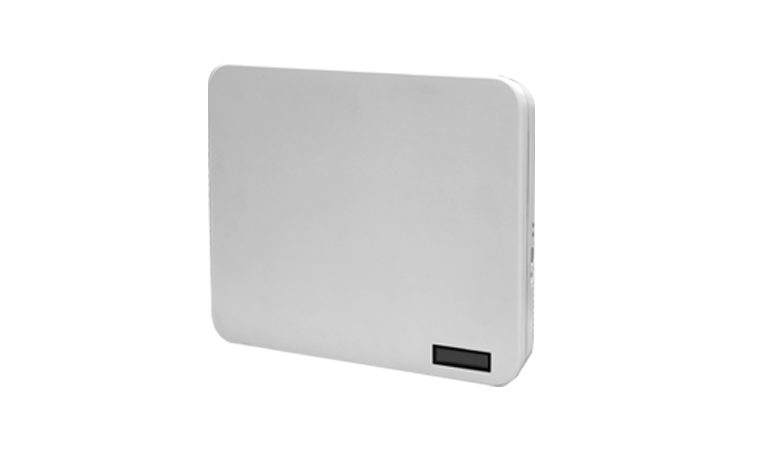

AT-501
5G Wireless Signal Jammer
A 5G cell phone signal jammer that meets the certification standards of authoritative Chinese institutions, using SDR signaling-level jamming technology to accurately block 2G/3G/4G/5G mobile communication signals from the four major operators including China Mobile, China Unicom, China Telecom, and China Broadnet, as well as wireless communication signal transmissions such as 2.4G (WiFi/Bluetooth) in indoor environments. The equipment is green and safe, widely used in confidential units such as the Party, government, military, various ministries and commissions, and military industrial groups.
It can be widely used in government, public security, justice, prisons, military, educational examinations, enterprises and other fields:
- Strictly controlled areas: prisons, detention centers, major exams to prevent cheating;
- Business security: R&D core technology, intellectual property protection, classified and sensitive departments, etc;
- Confidential meetings: major confidential meetings of party and government organizations and enterprises, closed bid evaluation, etc;
- Production security: gas stations, oil depots prohibit phone calls to prevent explosions and other accidents, production lines and workshops to ensure production safety and efficiency.
- Strictly controlled areas: prisons, detention centers, major exams to prevent cheating;
- Business security: R&D core technology, intellectual property protection, classified and sensitive departments, etc;
- Confidential meetings: major confidential meetings of party and government organizations and enterprises, closed bid evaluation, etc;
- Production security: gas stations, oil depots prohibit phone calls to prevent explosions and other accidents, production lines and workshops to ensure production safety and efficiency.
Features
Authoritative Certification
Tested and certified by Chinese authoritative institutions, in compliance with industry standards for cell phone signal jammers.
Good Jamming Effect
Signaling-level signal jammer based on SDR technology, which can achieve signal shielding in a 60㎡ indoor area with one device, and has stable long-term jamming. It can effectively solve the problems of difficult jamming of 5G signals and frequency bands re-cultivation.
Low Power
Low transmission power with less radiation, more friendly to the environment and human health.
Intelligent Jamming
Automatically detect environmental spectrum and adaptively adjust jamming strategies.
Integrated Design
No external antenna with good concealment.
Investment Protection
Based on SDR architecture, algorithm upgrades are carried out through software to ensure the continuous effectiveness of equipment under frequency bands re-cultivation.
Specifications
| Parameter | Description |
| Jamming Frequency Range |
Channel 1: 934-960MHz Channel 2: 2300-2370MHz Channel 3: 3400-3500MHz Channel 4: 3500-3600MHz Channel 5: 869-880MHz Channel 6: 2010-2170MHz Channel 7: 2515-2615MHz Channel 8: 758-798MHz Channel 9: 2615-2675MHz Channel 13: 4800-5000MHz Channel 14: 5150-5350MHz Channel 15: 5725-5850MHz |
| Jamming Mode | SDR (Software Defined Radio) |
| Jamming Distance |
(Environmental background intensity RSRP <-85dBm~-90dBm) High power: facing distance 10-12m, 120° sideline distance 6-8m Medium power: facing distance 8-10m, 120° sideline distance 4-6m Low power: facing distance 6-8m, 120° sideline distance 3-5m |
| Jamming Distance | <25W (single RF channel mode power <2W) |
| Number of RF Channels | 15 |
| Antenna type | Built-in directional antennas |
| Power Supply | Dedicated AC/Dcadapter for power supply |
| Size | 348mm*287mm*62mm |
| Weight | 2.6kg |
| Working Temperature | -20℃~40℃ |
*Special Announcement: Due to the product update and network display the existence of the conversion period, the page graphic parameters may be different from the actual product, the page graphic content does not serve as the basis for the actual delivery of specific products and technical parameters to determine the actual product configuration shall prevail. Intention to buy customers, please contact the sales staff to confirm in a timely manner, AWP retains the right to change the picture parameters and the final interpretation.
